In the realm of precision machining, the choice of tool holders can significantly impact the quality, efficiency, and overall performance of a machining operation. Among the various types of tool holders available, the Er20 tool holder stands out as a popular and versatile option. As a supplier of Er20 tool holders, I have witnessed firsthand the numerous advantages that these tool holders offer to machinists and manufacturers. In this blog post, I will delve into the key benefits of using an Er20 tool holder and explain why it is a valuable addition to any machining setup.
High Precision and Accuracy
One of the primary advantages of using an Er20 tool holder is its ability to provide high precision and accuracy in machining operations. The Er20 collet system, which is the core of the tool holder, is designed to grip the cutting tool firmly and concentrically. This ensures that the tool is held in place with minimal runout, which is the deviation of the tool's axis of rotation from its ideal position.
Minimal runout is crucial for achieving accurate and consistent machining results. When the runout is low, the cutting tool can engage with the workpiece more precisely, resulting in better surface finishes, tighter tolerances, and fewer defects. This is particularly important in applications where high precision is required, such as aerospace, medical, and automotive manufacturing.
Wide Range of Tool Compatibility
Another significant advantage of the Er20 tool holder is its wide range of tool compatibility. The Er20 collet system can accommodate a variety of cutting tools, including end mills, drills, reamers, and taps, with shank diameters ranging from 1mm to 10mm. This versatility allows machinists to use a single tool holder for multiple machining operations, reducing the need for multiple tool holders and simplifying the tooling setup.
In addition, the ability to use different types of cutting tools with the same tool holder provides greater flexibility in machining. Machinists can easily switch between different cutting tools depending on the specific requirements of the job, without having to change the tool holder. This not only saves time but also increases productivity and efficiency in the machining process.
Excellent Clamping Force
The Er20 tool holder is known for its excellent clamping force, which ensures that the cutting tool remains securely in place during machining. The collet system uses a tapered design that, when tightened, creates a strong radial force around the tool shank, holding it firmly in position. This high clamping force prevents the tool from slipping or moving during cutting, even under high-speed and high-feed conditions.
The excellent clamping force of the Er20 tool holder also contributes to the overall stability of the machining process. When the tool is held securely, it can withstand the forces generated during cutting without vibrating or deflecting. This results in smoother cutting, reduced tool wear, and longer tool life.
Easy Tool Changeover
Tool changeover is an essential part of the machining process, and the Er20 tool holder makes it quick and easy. The collet system is designed for simple and efficient tool installation and removal. To change a tool, the operator simply needs to loosen the nut on the tool holder, remove the old collet and tool, insert a new collet and tool, and then tighten the nut.
This easy tool changeover process reduces downtime between machining operations, allowing for more efficient production. It also enables machinists to make adjustments to the tooling setup quickly, which is especially useful in applications where frequent tool changes are required, such as prototyping and small-batch production.
Cost-Effectiveness
From a cost perspective, the Er20 tool holder offers significant advantages. Its versatility and wide range of tool compatibility mean that fewer tool holders are needed, which reduces the initial investment in tooling. Additionally, the long tool life and reduced tool wear associated with the high clamping force and precision of the Er20 tool holder result in lower tooling costs over time.
Moreover, the easy tool changeover and high efficiency of the Er20 tool holder contribute to overall cost savings. By reducing downtime and increasing productivity, machinists can produce more parts in less time, which translates into lower production costs per part.
Improved Machining Performance
The combination of high precision, excellent clamping force, and wide tool compatibility of the Er20 tool holder leads to improved machining performance. The tool holder allows for higher cutting speeds and feeds, which can significantly reduce machining time and increase productivity. At the same time, the accurate and stable cutting provided by the Er20 tool holder results in better surface finishes and higher-quality parts.
In high-speed machining applications, the Er20 tool holder's ability to maintain low runout and high clamping force is particularly beneficial. It enables the cutting tool to operate at higher speeds without sacrificing accuracy or surface finish, which is essential for achieving optimal machining results.
Compatibility with Various Machines
The Er20 tool holder is compatible with a wide range of machining machines, including CNC milling machines, lathes, and engraving machines. This makes it a versatile option for different types of machining operations. Whether you are working on a small benchtop CNC machine or a large industrial machining center, the Er20 tool holder can be easily integrated into your setup.
For example, when used with a Servo Motor, the Er20 tool holder can provide precise control and high-performance machining. The servo motor's accurate positioning and speed control capabilities, combined with the precision of the Er20 tool holder, result in excellent machining accuracy and efficiency.

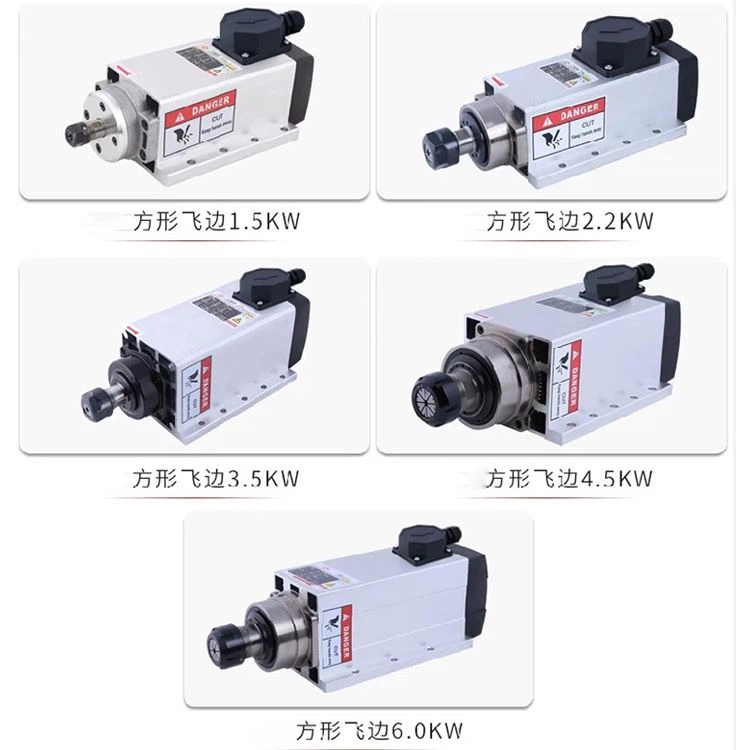

Similarly, when paired with a 4.5kw Air Cooling Spindle or an Engraving Machine Air-cooled Spindle, the Er20 tool holder can enhance the performance of the spindle. The high clamping force and stability of the tool holder ensure that the cutting tool can operate effectively with the spindle, resulting in high-quality engraving and machining results.
Conclusion
In conclusion, the Er20 tool holder offers a multitude of advantages that make it an excellent choice for precision machining applications. Its high precision, wide tool compatibility, excellent clamping force, easy tool changeover, cost-effectiveness, and compatibility with various machines make it a valuable asset in any machining setup.
If you are looking to improve the quality, efficiency, and performance of your machining operations, I highly recommend considering an Er20 tool holder. As a supplier of Er20 tool holders, we are committed to providing high-quality products and excellent customer service. If you have any questions or are interested in purchasing our Er20 tool holders, please feel free to contact us for more information and to discuss your specific requirements.
