Engraving Machine Air-cooled Spindle

Engraving machine air cooled spindle has strong power and reduces dynamic friction

Engraving machine air cooled spindle Thickened plate, pure copper coil, air cooling heat dissipation, so that the motor can be used longer.

Receiving the new motorized spindle starts at a low speed of 6000 and increases by 3000 every ten minutes,

After 24,000 revolutions, it can be used normally. Bearings inside the new spindle

Need to preheat run-in, remember oh! In addition to extend the service life of the spindle,

When using the spindle normally, it is best to start the test run for 10-15 minutes.

Take the 24,000 RPM spindle as an example, and the same applies to other speed spindles.

Engraving machine air cooled spindle 4 bearings, more powerful, more durable

Engraving machine air cooled spindle Pure copper coil, engraving without burrs, large torque, longer life

Dear customers and friends, hello!

1. All spindle motors in our store must be used together with frequency converter, and the voltage must be output by the frequency converter.

Because our spindle motor rated frequency is 400HZ, while our household two-phase electrical and industrial three-phase voltage output

The rated frequency is only 50-60HZ, such as the 400HZ corresponding to the spindle motor, the voltage is 220V, and the voltage corresponding to 200HZ

For 110V, then the voltage corresponding to 50HZ is 27.5V voltage, if you pass 220V or 380V at 50HZ,

The spindle motor will burn directly, remember!

2. There are two kinds of spindle motor 800W and 1.5KW aviation plugs, one is large aviation plug H20, and the other is small aviation plug H17

Do not understand can send pictures to customer service, did not contact customer service notes are random delivery oh, to your inconvenience respect

Please understand!

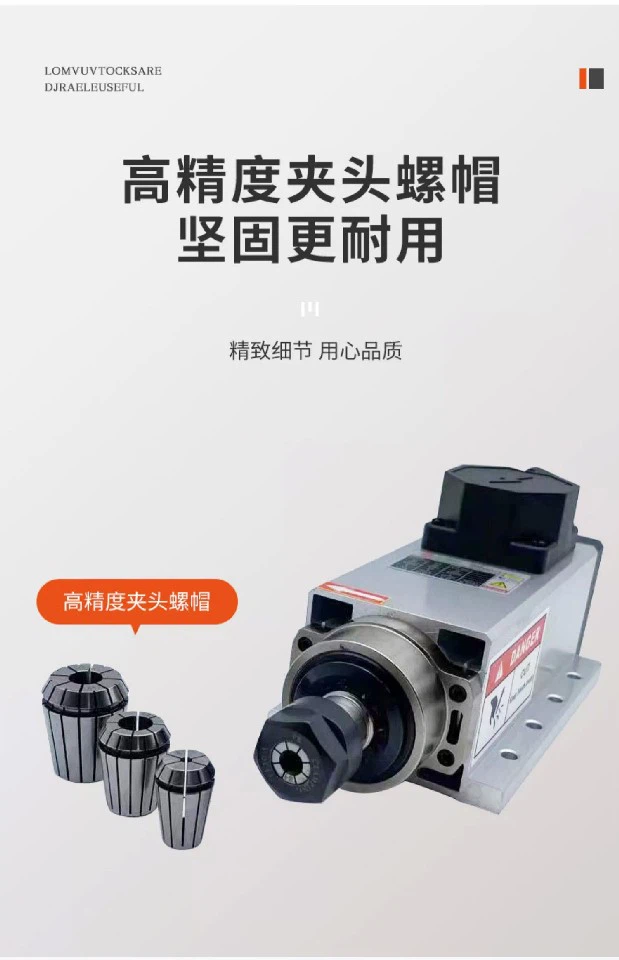

3.800W spindle motor is standard with 3.175MM chuck, 1.5KW and 2.2KW3.0KW3.2KW3.7KW are standard

One 6MM chuck, 5.5KW-7.5KW standard 12.7MM chuck, because our manufacturer's chuck nuts are conventional

Models are limited, if you need other models of chuck, you can consult customer service first whether you need the chuck, if you can

To contact customer service notes to send you the chuck you want, if you do not contact customer service notes and do not send you want the chuck

We need to bear the freight of reissue. Please understand the inconvenience caused to you.
