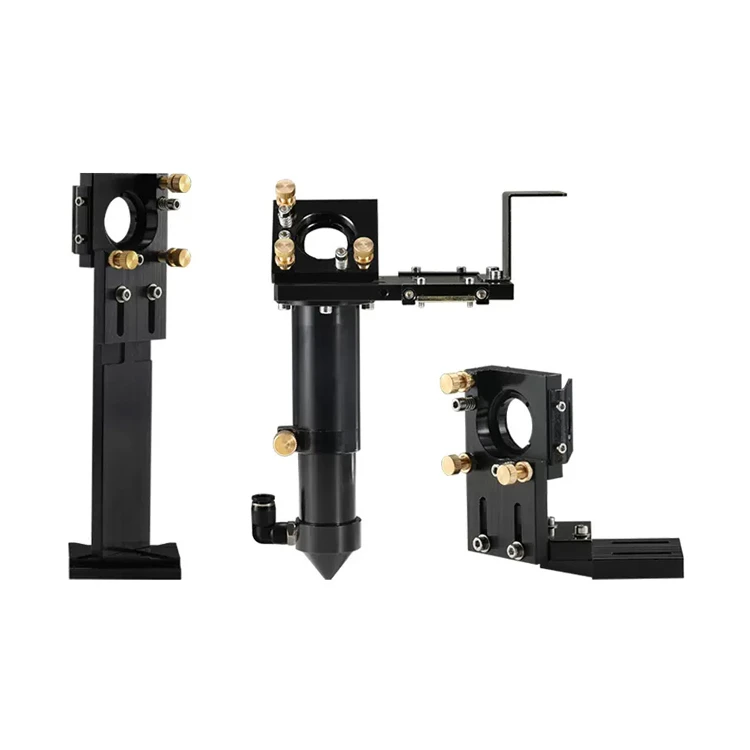

CO2 Cutting Head

All-in-one fixture installation with air auxiliary nozzle

This is only hardware accessories oh, this laser head will not emit laser!! Laser cutting head, excitation

Optical machine hardware accessories, laser cutting machine hardware accessories, machining accessories, laser head installation

The focusing lens is 2050.863.5, the reflecting lens is 25MM in diameter, and the laser head is mirror-free

Tablets, need to contact customer service to purchase, in stock, thank you

First reflector frame

1. Adjust the lens Angle design is reasonable, the light path is not easy to change

2. Easy height adjustment, fixed firmly

3. High precision, mirror press plate, ring structure, easy to fix the mirror, mirror installation position, diameter 25.3mm, and the mirror has 0.3mm gap, guaranteed

center

Focusing mirror mounting position, diameter 20.3mm

0.3mm clearance guaranteed for each installation

In the same position, no dimming is required after disassembly.

4. Can be installed focal length 50.8/63.5/101.6mm focusing lens A focusing lens can be installed two focal lengths:

Second reflector frame

G Series Optical Path set (with water cooling)

• Made of aluminum, black oxide coating
• Lens diameter :30mm; Lens diameter :25mm
• Lens focal length :63.5/101.6mm

G Series with water cooling

CO2 cutting head assembly diagram
