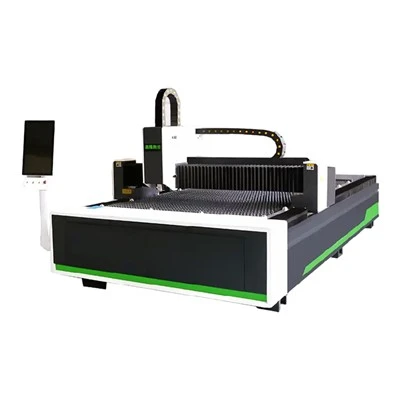

Laser Cutter For Laminated Sheet Materials

Rigid Machine Bed: Stress-relieved heavy steel gantry and bed structure designed to maintain geometric stability under rapid axis acceleration up to 1.2G.
Laser Optics & Source: Sealed RF CO2 laser tubes or high-beam-quality fiber sources featuring customizable wavelengths matched to organic and composite matrix absorption profiles.
Synchronized Material Handling: Motorized uncoilers and conveyor beds equipped with pneumatic edge-guiding rollers to prevent material skew and slip during continuous sheet or roll feeding.
Thermal Edge Control: Optimized gas-assist delivery and precision focusing lenses minimize the heat-affected zone (HAZ), achieving immediate thermal edge-sealing on thermoplastic and resin-bound laminates.
Extraction & Filtration: Dual-zone downdraft vacuum bed paired with dynamic particulate extraction to remove dense smoke and adhesive vapors generated during multi-layer vaporization.

Processable Materials
Plastics & Resins: High-Pressure Laminates (HPL), Formica, FR4 glass-epoxy sheets, acrylic-ABS laminates.
Composites & Textiles: Carbon fiber reinforced polymer (CFRP) sandwiches, multi-ply technical fabrics, acoustic PET felt laminates.
Industrial Substrates: Corrugated plastic boards, foam-core boards, rubberized cork gaskets.

Industry Applications
Electronics & Insulation: Precision profiling of FR4 printed circuit boards and insulating structural components.
Signage & Display: Dimensional lettering, edge-sealed POS displays, acrylic-aluminum composite panel fabrication.
Industrial Gaskets & Seals: Multi-layer rubber-fabric composite cutting for fluid-control and automotive installations.
Acoustics & Interiors: Architectural wall panels, sound-damping floor underlays, modular ceiling tiles.

Laser Power Modules: Scalable from 150 W for thin decorative laminates up to 1000 W for high-density industrial composite sheets.
Working Table Surface: Selectable aluminum blade slats for rigid panels, stainless steel honeycomb for delicate parts, or vacuum conveyor belts for roll-to-roll automated feeding.
Motion & Control: Industrial DSP controllers with touchscreen interfaces or PC-based CNC systems supporting direct import of DXF, AI, PLT, and Gerber files.
Feeding Accessories: Optional automatic pneumatic feeder, active material tension controller, and optical edge-recognition CCD cameras for printed pattern alignment.

Bed Machining: Structural steel frames are milled on large-scale CNC gantry milling centers in a single setup to guarantee bed parallelism and perpendicularity within 0.03 mm.
Optical Path Calibration: Laser beam alignment and power stability are verified using laser interferometers across the entire working envelope.
Factory Burn-In: Every assembled unit undergoes a mandatory 72-hour continuous dry-run test followed by actual material cutting trials prior to sign-off.
Documentation & Traceability: Comprehensive inspection reports, including geometric calibration charts and electrical safety testing records, are archived and shipped with the unit.

Dimension Adaptation: Custom bed lengths and widths built to fit standard sheet formats used in regional manufacturing plants.
Electrical Compliance: Control cabinets built to local industrial standards (CE compliant, UL/CSA compliant component layouts, specific voltage inputs such as 380V 3Ph 50Hz or 480V 3Ph 60Hz).
Software Integration: Customized post-processors for proprietary ERP or CAD/CAM nesting pipelines.
Mechanical Integration: Custom gantry clearance heights to accommodate thick 3D laminated assemblies.

Internal Protection: Units are wrapped in anti-corrosion VCI film and secured with shock-absorbing foam blocks to isolate motion components from transit vibration.

Crate Construction: Fumigation-free plywood export crates sealed with moisture-barrier foil linings.

Component Separation: Sensitive optical assemblies (laser tubes, focus lenses, mirrors) are packed in dedicated climate-controlled sub-boxes.

Pre-Shipment Verification: Final packing list audit, photographic logs of crating stages, and inclusion of physical/digital technical manuals.

Logistics Coordination: Secure container lashing supervised by in-house rigging technicians to prevent shifting during maritime or overland freight.

Documentation Delivery: Complete set of commercial invoices, packing lists, certificates of origin, and bill of lading provided prior to vessel arrival.

To receive an accurate technical proposal and commercial quotation, please provide the following parameters:

Material Details: Exact type of laminated sheet and total thickness.
Processing Dimensions: Maximum sheet size and required cutting path complexity.
Production Volume: Expected daily output or shift duration.
Destination: Delivery port or factory postal code for freight estimation.
Special Requirements: Specific software integration, power supply standards, or automation modules needed.
Submit Technical Inquiry / Request Quotation
