Galvanometer Laser Marking Machine has high speed and high precision.
Galvanometer Laser Marking Machine The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability.
Specific features are as follows
Differential photoelectric sensor accurately detects the position of the motor rotor, good linearity, small drift,
High resolution and repeated positioning accuracy.
Accurate load design for 10mm lens, high precision motor assembly, reasonable structure, static friction
The erasure coefficient and zero offset are small to ensure the good dynamic characteristics of the system.
The driver has the function of position and speed advance detection, which greatly improves the dynamic response of the whole system
Performance and scan speed.
Designed with overload, overcurrent and reverse protection, make the system run more reliable.
The whole system adopts electromagnetic compatibility optimization design, high signal-to-noise ratio and strong anti-interference ability.
The common problems such as temperature drift, signal interference and zero drift of galvanometer motor are solved.
Galvanometer Laser Marking Machine has high cost performance, strong stability, new appearance design, compatible with multiple scenes.

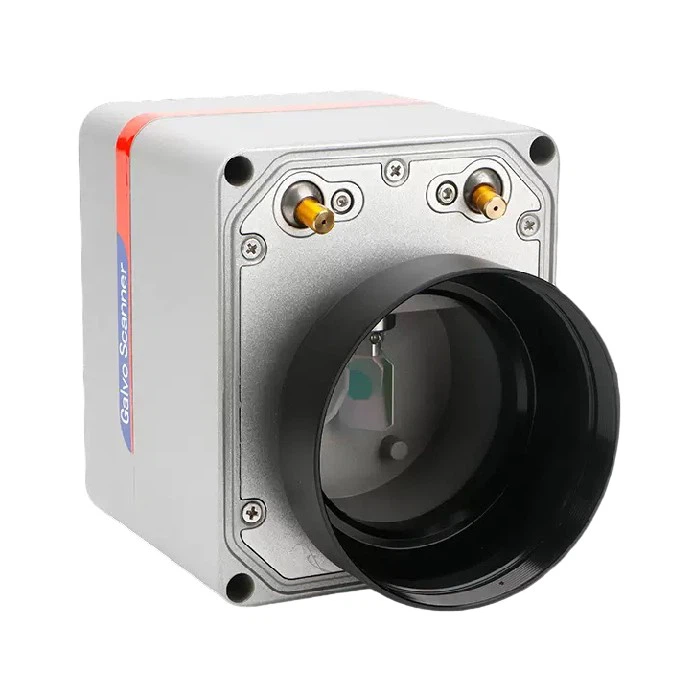

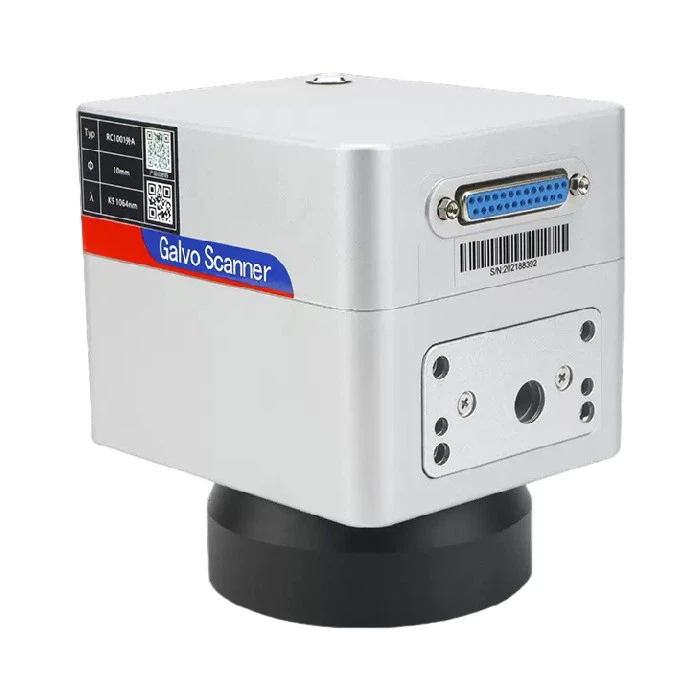

Galvanometer Laser Marking Machine detail display
Zero drift :<15 μRad./C
Long time drift (8 hours of continuous operation):<0.5mRad.
Average working current :2.0A
Peak current :15A(Max)
Scanning Angle :±15°
Storage temperature :-10 to +60℃
Resolution :12 μRad.
Repetition accuracy :8μRad.
Input aperture :10.0mm
Beam displacement :13.4mm
Weight :120g
Frequency :≤700Hz
Servo drive board parameters
Input voltage :±15VDC
Signal interface: Digital (XY2-100)
Position signal input resistance :1KΩ±1%
Position signal input ratio coefficient :0.33V/°
Position signal output ratio coefficient :0.33V/°
Operating temperature :0C-45℃
Driver plate size (L X W x H):75x50X28mm
